Zhongwang CAD Mechanical Edition is a new professional drawing software developed on the basis of Zhongwang CAD+ platform for mechanical design. It combines the powerful functions of similar foreign mechanical CAD software and the convenience of domestic similar software. It provides a number of features with its own characteristics; the following is a quick introduction to the technical requirements of the Zhongwang CAD mechanical version.
In the work, you will encounter various parts drawing, and their requirements for precision are different; so different technical requirements will be applied in the drawing of the drawing; when the drawing of the part is completed, multiple lines of text may be used. The command begins to write the technical requirements, or copy from the original drawings, and then paste, and then make a simple modification; and in the middle of the mechanical version of the CAD, only a few simple steps can be quickly completed to complete the technical requirements editing; Introduce how to quickly and easily edit and add technical requirements:
(1) Editing technical requirements
1. Click the "Technical Requirements" command in the menu bar (Figure 1), and select the text range of the technical requirements in the drawing area as a window.
figure 1

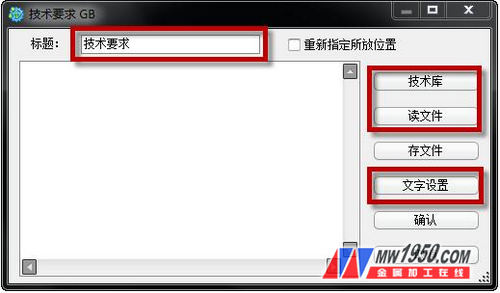

2. Modify the title name as needed
figure 2

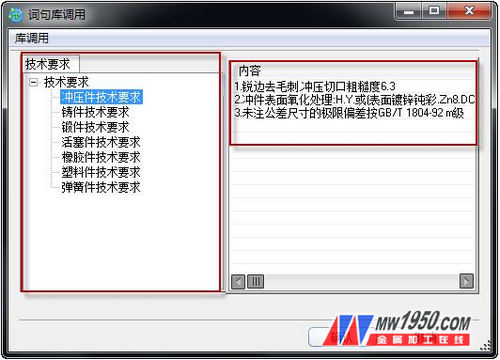

3. Select the technical requirements that meet the drawings from the “Technology Library†(Figure 3) or “Read Document†(Figure 4); (a template that provides a large number of technical requirements in the Zhongwang CAD Mechanical Edition)
image 3
Figure 4
4. Click the text box to modify the technical template directly, or modify the text style in the text settings (Figure 5); click Modify to complete the editing of the technical requirements.
Figure 5
(2) Add a custom "Technical Requirements" template
1. Customize the technical requirements in the "Technology Library"

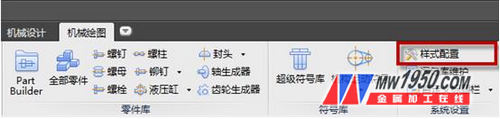

1) Find the "Style Configuration" command in the menu bar, (Figure 6)
Image 6

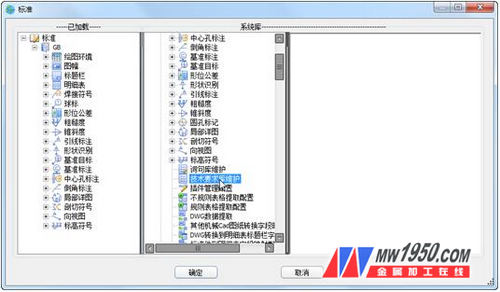

2) Click the "Style Configuration" command, find "Technical Requirements Library Maintenance" and double-click to open (Figure 7);
Figure 7

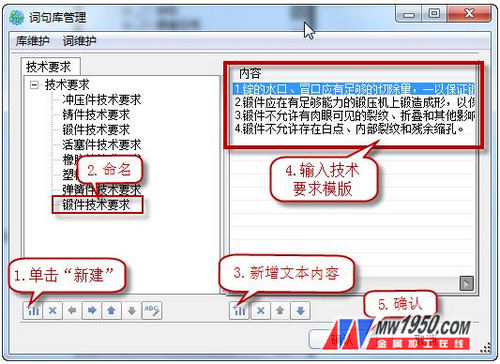

3) Click “New†to enter the technical requirement name, then click New under the text box, then enter the technical requirement template to be added in the text box; finally click OK to complete the addition of the custom technology template (Figure 8); add Once completed, you can select an application directly in the Technical Library.
Figure 8
2. Custom technical condition file
1) Click the "Technical Requirements" command in the menu bar to select the text range of the technical requirements in the drawing area in the window;

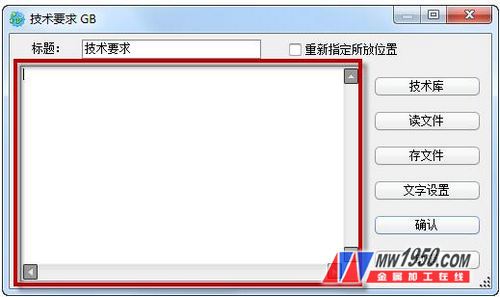

2) Enter the technical requirements template to be added or paste it directly into the text box (Figure 9).
Figure 9

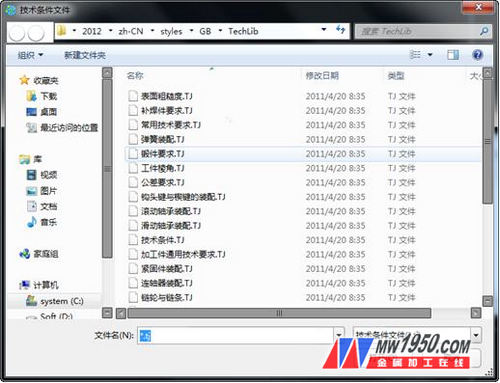

3) After completing the template editing of the technical requirements, click “Save Fileâ€, then enter the file name and click Save (Figure 10). After the save is complete, you can select the application directly from “Read Fileâ€.
Figure 10
