Rust Resistant Black Oxide Stainless Steel Rope Wire Mesh

Model NO.: FH-SBW
Wire Mesh Width: 1.2m
Technique: Woven
Nickels: 8%
Certification: ISO9001
Color: Ss Color,Red
Delivery Time: 20days
Uses: Protecting Mesh, Screen, Construction Wire Mesh, D
Dia: 1.0-4.0mm
Woven Type: Buckle Cross
Trademark: fuhua
Transport Package: in Bulk or Pallet
Specification: 1x1
Origin: Anping, Hebei
HS Code: 73141400
There are two types: knotless and knotted
The structures of the stainless steel wire cable have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
The flexible stainless steel cable net is widely used in geographical environments, aquaculture, wild animal fencing, engineer anti-explosion,throw screen,handrail screen,etc
Stainless steel cable net is produced with high quality stainless steel wire cable and stainless steel ferrule, the stainless steel grade includes type201, type304, type304L, type316, type316L.

The flexible stainless steel rope net's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
Special specification can be customized.


The specification of stainless steel ferrule rope mesh

Code Rope Construction Rope Diameter Aperture Breaking Force

Inch mm mm kN

SFRM-01 7 × 19 1/8 3.2 120 × 208 7.38

SFRM-02 7 × 19 1/8 3.2 100 × 173 7.38

SFRM-03 7 × 19 1/8 3.2 90 × 156 7.38

SFRM-04 7 × 7 3/32 2.4 100 × 173 4.18

SFRM-05 7 × 7 3/32 2.4 90 × 156 4.18

SFRM-06 7 × 7 3/32 2.4 80 × 139 4.18

SFRM-07 7 × 7 3/32 2.4 70 × 121 4.18

SFRM-08 7 × 7 5/64 2.0 100 × 173 3.17

SFRM-09 7 × 7 5/64 2.0 90 × 156 3.17

SFRM-10 7 × 7 5/64 2.0 80 × 139 3.17

SFRM-11 7 × 7 5/64 2.0 70 × 121 3.17

SFRM-12 7 × 7 1/16 1.6 80 × 139 2.17

SFRM-13 7 × 7 1/16 1.6 70 × 121 2.17

SFRM-14 7 × 7 1/16 1.6 60 × 104 2.17

SFRM-15 7 × 7 1/16 1.6 51 × 87 2.17

SFRM-16 7 × 7 3/64 1.2 80 × 139 1.22

SFRM-17 7 × 7 3/64 1.2 60 × 104 1.22

SFRM-18 7 × 7 3/64 1.2 50 × 87 1.22

SFRM-19 7 × 7 3/64 1.2 40 × 69 1.22

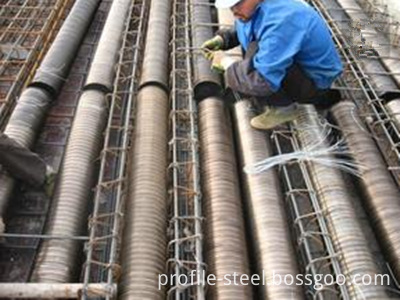

Galvanized Prestressed Corrugated Pipe is one of the bridge accessories.It is a part of bridge accessory field.It is u
